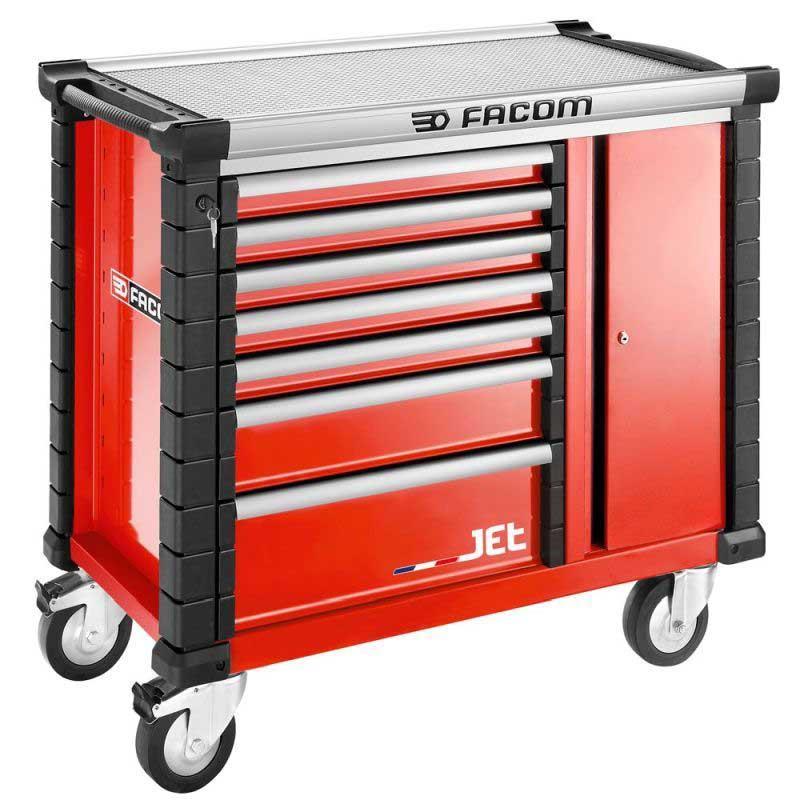

• 7 drawers mobile workbench = 18 modules distributed in the 60 and 130 mm drawers.
• 5 drawers height 60 mm = 15 modules.
• 1 drawer height 130 mm = 3 modules.
• 1 drawer height 200 mm.
• Drawers can be fitted with thermoshaped or foam modules from FACOM Modular system program.
• Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure.
• 100% opening drawers for optimum ease of use.
• Load resistance per drawer: 20/25/35 kg.
• Total load in the drawers: 155 kg.
• Total storage capacity: 155 liters.
• Drawers useful dimensions (L x D x H): 569 x 421 x 60/130/200 mm.
• 1 full-length closed compartment for storing long tools: Door with key lock. Identical key for the drawers and the compartment.
• Compartment dimensions: 378 x 450 x 750 mm (passage width with door open 286 mm)
• The compartment is equipped with a removable shelf 3760 x 382 adjustable in steps of 70 mm with front/rear edge.
• Supplied with the plastic tray, 2 partitions JET2.15 for 60 mm drawers and 2 partitions JET2.16 for 130 mm drawers.
• Additional metal partitions can be ordered separately if needed.
• Worktop:
- Extra large worksurface: +25% vs JET+.
- Useful dimension 987 x 461 mm: 0,46m2.
- High resistance: a 2 mm aluminium plate, rice grain finish, covers a 15 mm wooden board.
- The end caps are made of impact-resistant polypropylene.
- The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 1100 kg.
- Even more functional: integrated bi-material handles with soft coating on each side of the cabinet.
- One for moving and one to lift the roller cabinet and ride over obstacles.
• Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories.
- The installation of accessories is fast and secure.
- A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation.
- Dedicated slots for 8 screwdrivers.
- Built-in edges prevent tools from falling on the move.
• Drawers:
- Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure.
- Exclusive FACOM design ensuring easy grip.
- Lifting handpulls made of anodized aluminum with safety hook avoiding any opening while.
- Premium self-closing system ensures secure closure and further safety.
- Centralized locking system, delivered with 2 keys, one folding.
- With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook.
• High performance maneuverability:
- Reduced start-up effort (less than 7kg thrust), Long lifetime (resists to chipping, common hydrocarbons), High resistance to heavy loads.
- 4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill.
- Roller cabinet delivered with wheels already attached.
We also offer the possibility of installing:
- working wooden top
- oilproof rubber plate
If you have any questions, please contact us.
The top and sides can be equipped with numerous accessories.
Additional equipment available in the "related products" tab.
-
Symbol:
JET.T7M3A
-
L [mm]:
1194.00
-
W [mm]:
575.00
-
H [mm]:
1035.00
-
Opis:
ruchome stanowisko pracy JET
-
Color:
czerwony
-
Ilość szuflad:
7
-
Moduły/szufladę:
3
