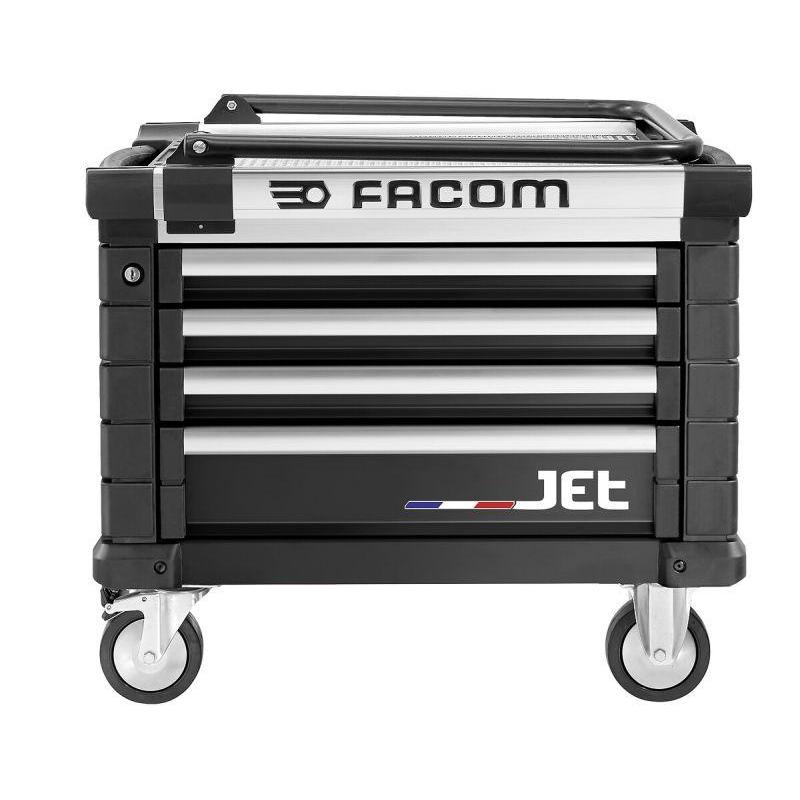

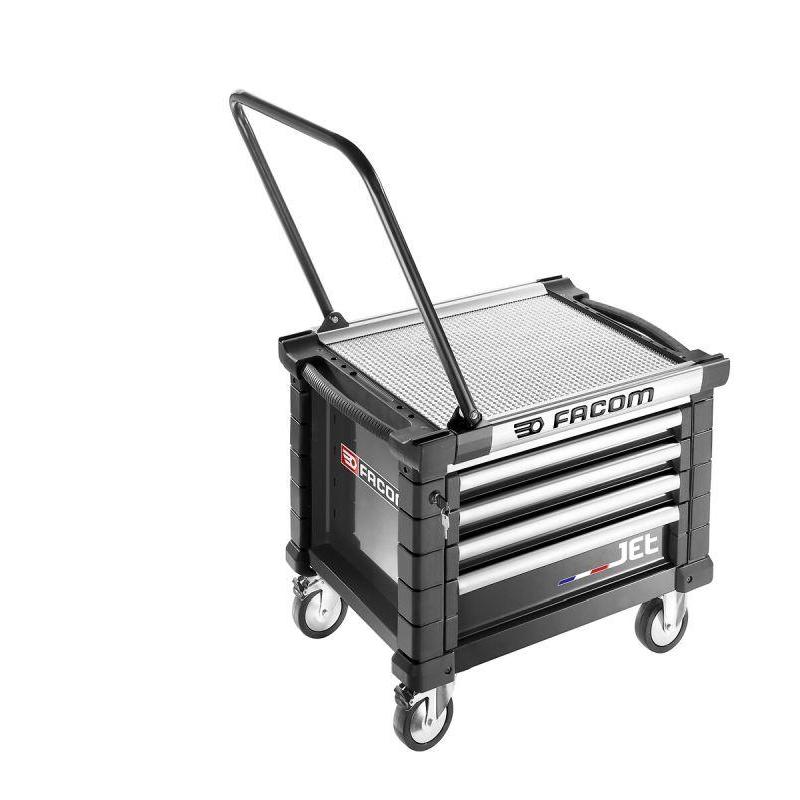

• 4 drawers chest = 12 modules distributed in the 60 and 130 mm drawers. • 3 drawers height 60 mm = 9 modules. • 1 drawer height 130 mm = 3 modules. • Drawers can be fitted with thermos aped or foam modules from Facom Modular system program. • Load resistance per drawer: 20/25kg. • 100% opening drawers for optimum ease of use. • Total load in the drawers: 85 kg. • Total storage capacity: 75 litres. • Drawers useful dimensions (L. x D. x H.): 569 x 421 x 60 / 130 mm. • Can be fitted with the JET2.15 and JET2.16 removable partitions - not supplied. • To be used alone or combined with a JET.C4M3A fixed chest for maximum storage.
• Worktop: - Extra large worksurface : +25% vs JET+. - Useful dimension 605 x 461 mm. 0.28m2. - High resistance: a 2 mm aluminium plate -rice grain finish- covers a 15 mm wooden board. - The end caps are made of impact-resistant polypropylene. - The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 500 kg. - Even more functional: integrated bi-material handles with soft coating on each side of the cabinet. - One for moving and one to lift the roller cabinet and ride over obstacles. • Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories. - The installation of accessories is fast and secure. - A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation. - Dedicated slots for 8 screwdrivers. - Built-in edges prevent tools from falling on the move. • Drawers: - Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure. - Exclusive FACOM design ensuring easy grip. Lifting handpulls made of anodized aluminium with safety hook avoiding any opening while. - Premium self-closing system ensures secure closure and further safety. - Centralized locking system, delivered with 2 keys, one folding. - With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook. • High performance manoeuvrability: - Foldable handle for travelling. - Easy handling thanks to its high performance wheels. - Reduced start-up effort (less than 7kg thrust), Long lifetime (resists to chipping, common hydrocarbons), High resistance to heavy loads. - 4 wheels diameter 125 mm, 2 fixed, 2 swivel, each with a brake for an extra stability while working . - Chest delivered with wheels already attached.
We also offer the possibility of installing: - working wooden top - oilproof rubber plate If you have any questions, please contact us.
The top and sides can be equipped with numerous accessories. Additional equipment available in the "related products" tab.
• Dimensions L x W x H: 380 x 200 x 340 mm • Weight: 1.6 kg • This dedicated holder will enable you to store your powertools. • Ergonomic storage position for better accessibility to tools. • Soft rubber protection avoiding to damage your tools. • Easy, fast and secured installation on the side of the cabinet. • Heavy Duty Steel - High Quality Powder Coating.
• Dimensions L x W x H: 380 x 270 x 200 mm • Weight: 2.1 kg • For laptop computer reception and/or writing desk. • Secured deposit thanks to large edges and possibility of locking. • Easy, fast and secured fixing on the aluminium rails of the worktop. • The board can tilt up to 90 degrees and rotate through 360 degrees.
• Dimensions L x W x H: 775 x 550 x 30 mm • Weight: 10 kg • Transform your M3A cabinet into a mobile workbench thanks to this 28mm beech plywood worktop. • Quick and easy installation in the aluminium rails of the worktop. • 6 screws to be fixed for a very stable work surface.
• Dimensions: 45 x 25 x 50 mm • Weight: 0.5 kg • Set of 2 metal hooks that can be hung on the aluminum rail of your worktop. • Allows the storage of your cable rolls or the deposit of tools and long objects that cannot be stored in a drawer. • Compatible with JET (serie 2021).
• Dimensions L x W x H mm 550 x 350 x 120 mm • Weight: 9 kg • The perfect solution when you need some extra space or storage. • Large bin to store tools, bottles, modules, anything that may be needed for your job. • Can also be used as a drop-off bin when dismantling parts. • Steel - Powder coating High quality. • Compatible with JET (serie 2021).
• Dimensions L x W x H: 600 x 20 x 800 mm • Weight: 7 kg • A common structure makes it possible to mix the panels, the shelves, the bars for various and varied arrangements, adapted to your needs. • The JET.WA22KIT1 kit consists of: - 1 structure JET.WA22-1 - 1 perforated panel JET.WA22-2A - 1 tilting shelf JET.WA22-5
• Dimensions L x W x H: 600 x 20 x 800 mm • Weight: 6 kg • A common structure makes it possible to mix the panels, the shelves, the bars for various and varied arrangements, adapted to your needs. • The JET.WA22KIT2 kit consists of: - 1 structure JET.WA22-1 - 2 tiltable shelves JET.WA22-5
• Dimensions: 600 x 20 x 800 mm • Weight: 3.6 kg • This structure makes it possible to mix the panels, the shelves, the bars for various and varied arrangements, adapted to your needs • 2 metal bars 28 mm + fiber-reinforced polypropylene supports to be attached to the aluminum rail of your worktop (The top bar can be used to storage of cable reels, various rolls) • Compatible with JET (serie 2021)
• Dimensions: 560 x 10 x 400 mm • Weight: 2 kg • Visual organisation and easy access to your tools. • Perforated panel: 6 x 6mm in steps of 12mm. • Fixing of tools using the CKS range of hooks. • Stackable. • Heavy duty steel construction High quality durable powder coating finish. • Compatible with JET (2021).
• Dimensions: 560 x 10 x 400 mm • Weight: 2.2 kg • Visual organisation and easy access to your drawings, repair instruction. • Stackable. • Heavy duty steel construction High quality durable powder coating finish. • Compatible with JET (2021).
• Dimensions: 250 x 130 x 10 mm • Weight: 0.5 kg • This small shelf will allow you to store your tools, bins of nuts and screws. • Easy, quick and secure attachment. No risk of dropping out while traveling. • Rim on the front preventing objects from falling. • Heavy duty steel construction High quality powder coating.
• Dimensions: 400 x 130 x 10 mm • Weight: 0.8 kg • This shelf will allow you to store your tools, bins of nuts and screws. • It can also receive a foam or plastic tray allowing you to have your tools at hand. • Easy, quick and secure attachment. No risk of dropping out while traveling.
• Dimensions: 600 x 20 x 800 mm • Weight: 7 kg • This shelf will allow you to store your tools, bins of nuts and screws. • It can also receive a foam or plastic tray allowing you to have your tools at hand. • Easy, quick and secure attachment to the JET.WA22 structure.
• Dimensions (wys. x gł.): 100 x 80 mm • Weight: 1,7 kg • Universal holder to support or carry windscreens and body panel. • Thanks to the four high density pads, the parts don`t move when you are working on them. • The foam protections are ideal for working on windscreens or body panels and prevent any scratching of the surface.
• Dimensions: 250 x 600 x 20 mm • Weight: 4 kg • Use your vice without damaging on the worktop and losing too much space. • Easy and fast to install on your worktop rails. • The support can slide from left to right according to your needs. • Robust: 28mm beech plywood. • Vice not delivered. • Compatible with JET (2021).
• Dimensions: 112 x 380 x 125 mm • Weight: 1,4 kg • For storing aerosols, cleaning products, sprays, etc. • Heavy duty steel construction - High quality durable powder coating finish. • Compatible with all FACOM roller cabinets. • Can also be installed on the side of JETLINE and RWS furniture.
