• 4 drawers chest = 12 modules distributed in the 60 and 130 mm drawers.
• 3 drawers height 60 mm = 9 modules.
• 1 drawer height 130 mm = 3 modules.
• Drawers can be fitted with thermos aped or foam modules from Facom Modular system program.
• Load resistance per drawer: 20/25 kg.
• 100% opening drawers for optimum ease of use.
• Total load in the drawers: 85 kg.
• Total storage capacity: 75 litres.
• Drawers useful dimensions (L. x D. x H.): 569 x 421 x 60 / 130 mm.
• To be used alone or together with a JET.M3A rolling cabinet or a JET.CR4M3A mobile chest.
• Supplied with the link kit for easy and secured mounting of the assembly.
• Can be turned in a mobile version with the wheel set JET.C4MOBILEKIT (handle + 4 wheels).
• Worktop:
- Extra large worksurface: +25% vs JET+.
- Useful dimension 605 x 461 mm. 0.28m2.
- High resistance: a 2 mm aluminium plate - rice grain finish - covers a 15 mm wooden board.
- The end caps are made of impact-resistant polypropylene.
- The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 500 kg.
- Even more functional: integrated bi-material handles with soft coating on each side of the cabinet.
- One for moving and one to lift the roller cabinet and ride over obstacles.
• Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories.
- The installation of accessories is fast and secure.
- A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation.
- Dedicated slots for 8 screwdrivers.
- Built-in edges prevent tools from falling on the move.
• Drawers:
- Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure.
- Exclusive FACOM design ensuring easy grip.
- Lifting handpulls made of anodized aluminium with safety hook avoiding any opening while.
- Premium self-closing system ensures secure closure and further safety.
- Centralized locking system, delivered with 2 keys, one folding.
- With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook.
We also offer the possibility of installing:
- working wooden top
- oilproof rubber plate
If you have any questions, please contact us.
The top and sides can be equipped with numerous accessories.
Additional equipment available in the "related products" tab.
-
Symbol:

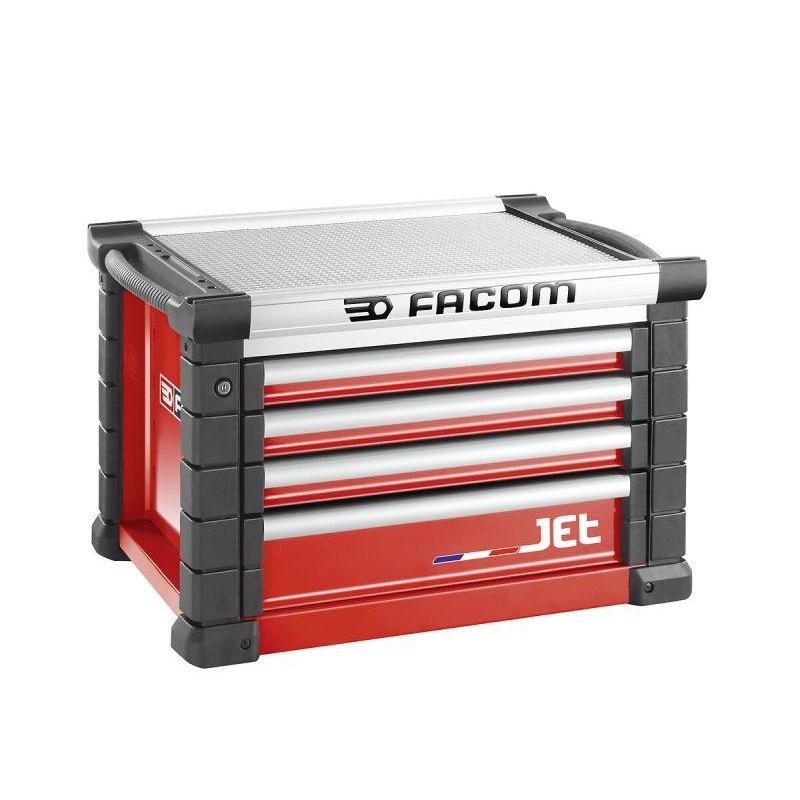

JET.C4M3A
-
L [mm]:
814.00
-
W [mm]:
575.00
-
H [mm]:
500.00
-
Opis:
skrzynka JET
-
Color:
czerwony
-
Ilość szuflad:
4
-
Moduły/szufladę:
3
