• 6 drawers roller cabinet = 20 modules distributed in the 60 and 130 mm drawers.
• 4 drawers height 60 mm = 16 modules.
• 1 drawer height 130 mm = 4 modules.
• 1 drawer height 270 mm.
• Drawers can be fitted with thermos aped or foam modules from Facom Modular system program.
• The 270 mm drawers can also be fitted with modules.
• Load resistance per drawer: 25/30/45 kg.
• 100% opening drawers for optimum ease of use.
• Total load in the drawers: 175 kg.
• Total storage capacity: 205 liters.
• Drawers useful dimensions (L. x D. x H.): 759 x 421 x 60 / 130 / 270 mm.
• Worktop:
- Extra large worksurface: +25% vs JET+.
- Useful dimension 797 x 461 mm. 0,37m2.
- High resistance: a 2 mm aluminium plate -rice grain finish.
- Covers a 15 mm wooden board.
- The end caps are made of impact-resistant polypropylene.
- The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 1000 kg.
- Even more functional : integrated bi-material handles with soft coating on each side of the cabinet.
- One for moving and one to lift the roller cabinet and ride over obstacles.
• Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories.
- The installation of accessories is fast and secure.
- A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation.
- Dedicated slots for 8 screwdrivers.
- Built-in edges prevent tools from falling on the move.
• Drawers:
- Equipped with ball bearing slides, total extension with "self close" return spring for an efficient and secure closure.
- Exclusive FACOM design ensuring easy grip.
- Lifting handpulls made of anodized aluminum with safety hook avoiding any opening while.
- Premium self-closing system ensures secure closure and further safety.
- Centralized locking system, delivered with 2 keys, one folding.
- With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook.
• High performance maneuverability:
- Reduced start-up effort (less than 7kg thrust), Long lifetime (resists to chipping, common hydrocarbons), High resistance to heavy loads.
- 4 wheels diameter 125mm, 2 fixed, 2 swivel, each with a brake for an extra stability while working.
- Roller cabinet delivered with wheels already attached.
We also offer the possibility of installing:
- working wooden top
- oilproof rubber plate
If you have any questions, please contact us.
The top and sides can be equipped with numerous accessories.
Additional equipment available in the "related products" tab.

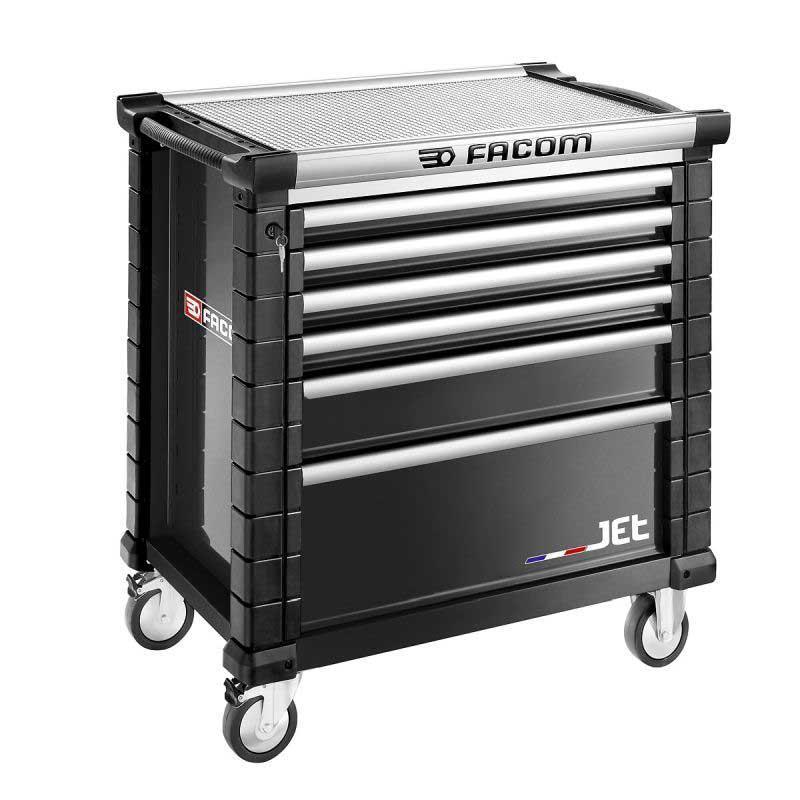

Symbol | JET.6NM4A |
L [mm] | 1004.00 |
W [mm] | 575.00 |
H [mm] | 1005.00 |
Opis | wózek JET |
Kolor | czarny |
Ilość szuflad | 6 |
Moduły/szufladę | 4 |
