• Overall dimensions (L x D x H): 2182 x 750 x 1055 mm
• Weight: 232 kg
• Easy and quick installation
• Height: 1025 mm
• Length: 2182 mm
• Depth: 750 mm
• Weight: 263.5 kg
• Description:
• One 6-drawer unit JLS2-MBS6T:
- 4 drawers 60 mm high, 1 drawer 130 mm high, 1 drawer 270 mm high.
• One 7-drawer unit JLS2-MBS7T:
- 5 drawers 60 mm high, 1 drawer 130 mm high, 1 drawer 200 mm high.
- Drawer useful size: L.569 x D.421mm.
- Single keylock.
- Fitted with 4 jack-mounted swivel feet for perfect adjustment.
- Overall dimensions: L.722 x D.701 x H.810 mm.
• 1 JLS2-PSH foot:
- Foot made of epoxy painted sheet steel (thickness 12/10ths).
- Fitted with jack-mounted swivel feet for adjustment providing complete stability irrespective of the type of floor.
- Dimensions: L.100 mm x H.985 mm x D.650 mm.
- Colour black 9004.
• 1 low unit raising base JLS2-BASEMBS:
- Base in 12/10th steel sheet.
- Dimensions: L.720 mm x H.180 mm x D.699 mm.
- Colour black 9004.
• One JLS2-PBST3 worktop:
- Panel made of multi-ply beech of thickness 40 mm covered with 10/10th 304 L brushed stainless steel for improved impact
and heat resistance (edge also covered - painted metal cover for the sides). Sides will be protected by a finishing painted metal sheet.
- Fast and easy assembly thanks to pre-drilled metallic inserts positions. Capable of supporting loads: 1 ton.
• A JLS2-TRBB3 cross-beam
- Multifunction cross beam: connecting, reinforcement and storage space, 2 possible positions: horizontal or vertical.
- Made of epoxy painted steel sheet (thickness 12/10ths).
- Colour red 3020.
• Overall dimensions (L x D x H): 2182 x 750 x 1055 mm
• Weight: 232 kg
• Easy and quick installation
Zapytaj o produkt

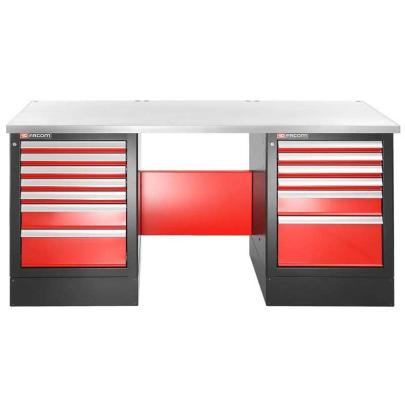

JLS2-2MS13DH - workbench 2 m, metal worktop, 13 drawers, high version
