CHRONO.6GM3HDPB

Facom

3662424086328

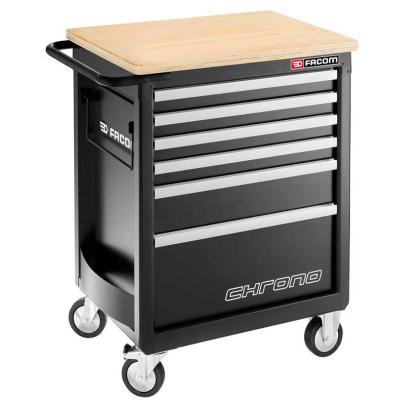

    CHRONO.6GM3HD - roller cabinet - 6 drawers - 3 modules per drawer - Heavy loads and safety

    • Total dimensions: 848 x 540 x 997 mm.
    • Weight: 77 kg.

    • Worktop: 760 x 540 mm.
    • Useful dimensions of drawers: 569 x 421 x 60/130/270 mm.

    No reward points for this product.


    More info

    • 6-drawer roller cabinet = 15 modules distributed in the 60 and 130 mm drawers.
    - 4 drawers 60 mm high = 12 modules.
    - 1 drawer 130 mm high = 3 modules.
    - 1 drawer: 270 mm high (can also be fitted with modules).
    - Load per drawer: 50 kg.
    • Useful dimensions of drawers (L. x D. x H.): 569 x 421 x 60 / 130 mm.
    • Fitted with SAFETY LOCK SYSTEM, an interlocking system preventing simultaneous opening of
      several drawers (a single drawer at a time, preventing any risk of roller cabinet tipping).
    • Drawers: features ball slides, total extension with "soft close’ return spring for soft and safe closing.
    • Exclusive design in anodised aluminium for ideal comfort and grip.
    • Load per drawer: 50 kg.
    • Worktop: large 760x540mm worktop made of 30 mm thick multi-ply beech with rounded angles,
      with a 1000 kg static load resistance. Ideal to fit a vice.
    • Safety: lock located on the side.
    • Centralized key-locking, supplied with 2 keys, 1 hinged.
    • Handling:
    • Large metal handle.
    • 4 JET + wheels, diam. 125 mm, 2 castors (one with brake) and 2 fixed.
    • Low starting load, resistance to chips and most usual common hydrocarbons.
    • Roller cabinet supplied with the wheels fitted.
    • Accessories: supplied with 1 bottle holder (fits on the right or left), 1 paper roll holder included.
    • Perforated roller cabinet side panels to fit the accessories of the JETXL range.

    Data sheet

    SymbolCHRONO.6GM3HDPB
    L [mm]848.00
    W [mm]540.00
    H [mm]997.00
    Opiswózek warsztatowy, gama bezpieczna, wzmocniona
    Kolorczarny
    Ilość szuflad6
    Moduły/szufladę3

    Related products

    Reviews

    Write a review

    CHRONO.6GM3HD - roller cabinet - 6 drawers - 3 modules per drawer - Heavy loads and safety

    CHRONO.6GM3HD - roller cabinet - 6 drawers - 3 modules per drawer - Heavy loads and safety

    • Total dimensions: 848 x 540 x 997 mm.
    • Weight: 77 kg.

    • Worktop: 760 x 540 mm.
    • Useful dimensions of drawers: 569 x 421 x 60/130/270 mm.
