DLS.500HPS

Facom

3662424011443

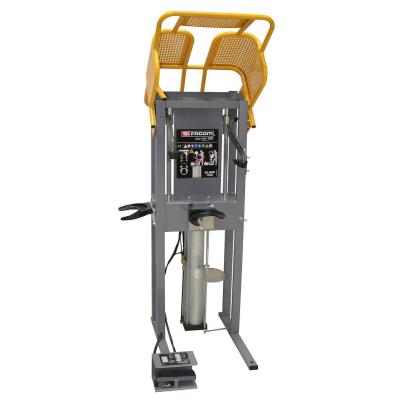

    DLS.500HPS - high safety pneumatic spring compressor

    • Pneumatic spring compressors for removing and fitting shock absorbers on Mac Pherson struts.
    • Pressure: 1200 --> 2200 kg according to air pressure (7 to 10 bars).
    • Compression travel 440 mm.
    • Dimensions 648 x 731 x 1535 mm.
    Weight: 89 kg.

    No reward points for this product.


    More info

    • Pneumatic spring compressors for removing and fitting shock absorbers on Mac Pherson struts.
    • Pressure: 1200 --> 2200 kg according to air pressure (7 to 10 bars).
    • Compression travel 440 mm.
    • 6 safety devices:
    - Reinforced frame.
    - Air cut off when the cage is opened.
    - Valve preventing the arms from raising in case of accidental air supply cut-off. No sudden spring decompression.
    - Cage locked when the arms start lowering.
    - Highly enveloping cage (upper, centre and lower protection).
    - Long pedal to allow the operator to stand far.
    • Supplied with 2 flanges (springs 78 to 182 mm).
    • Other cups also available.
    • EC compliance certified by an independent laboratory.
    • Meets the CE directive on machinery and the French labor  code. Directive 2006/42/CE of the European Parliament and Council of 17 May 2006 on machinery.
    • Dimensions 648 x 731 x 1535 mm.
    Weight: 89 kg.

    Data sheet

    SymbolDLS.500HPS
    Nazwastanowisko pneumatyczne do ściągania sprężyn

    Related products

    Reviews

    Write a review

    DLS.500HPS - high safety pneumatic spring compressor

    DLS.500HPS - high safety pneumatic spring compressor

    • Pneumatic spring compressors for removing and fitting shock absorbers on Mac Pherson struts.
    • Pressure: 1200 --> 2200 kg according to air pressure (7 to 10 bars).
    • Compression travel 440 mm.
    • Dimensions 648 x 731 x 1535 mm.
    Weight: 89 kg.
